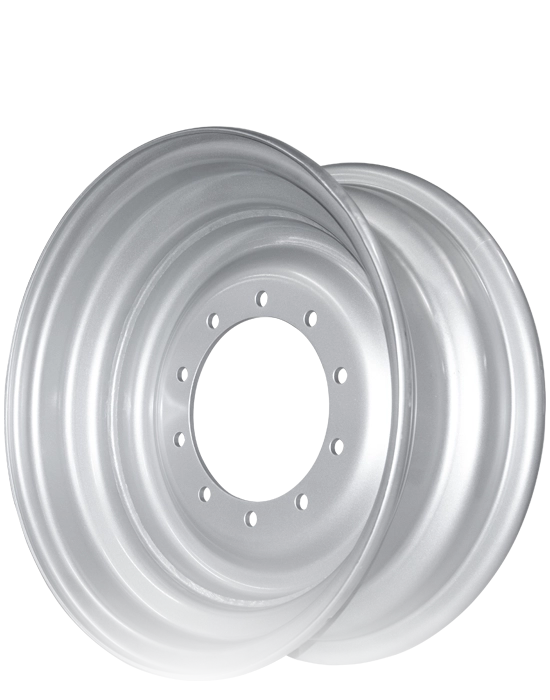

TELEHANDLER Wheels

TELEHANDLER Wheels range in size from 16.5 to 28. Configured in one- to five-piece designs, OTR’s wheels meet industry standards for original equipment and OEM-compliant replacements. Wheel quality and reliability is bolstered by precision manufacturing. Critical components are made of HSLA grade steel for use in high-stress applications.

Find a Dealer

Wheels

Selection Tool

Enter information about your equipment or vehicle to view brands that match, then select your brand for more information.

Search: Brand: Make: Model: Equipment: Industry: Wheel Size:

redered_column

Part Number	Brand	Wheel Size	Fits Tire Size	Diameter (in)	Diameter (mm)	Depth (in)	Depth (mm)	Bolt Holes	Bolt Pattern (in)	Bolt Pattern (mm)	Bolt Hole Circle (in)	Bolt Hole Circle (mm)	Pilot Hole (in)	Pilot Hole (mm)	Nut Angle	Hub Length (in)	Hub Length (mm)	Center ID (in)	Center ID (mm)	Offset (in)	Offset (mm)	Countersink	Backspace (in)	Backspace (mm)	Configuration	Bearing Type	Type	Pieces	TRA Rim Type	Bead Seat	Flange	Lock Ring	Load Index	Material	Color	Detail URL	Brand	Brand Cat.	Brand Post ID	Make	Model	Equipment	Industries	Image	Permalink

Part Number	Brand	Wheel Size	Fits Tire Size	Diameter (in)	Diameter (mm)	Depth (in)	Depth (mm)	Bolt Holes	Bolt Pattern (in)	Bolt Pattern (mm)	Bolt Hole Circle (in)	Bolt Hole Circle (mm)	Pilot Hole (in)	Pilot Hole (mm)	Nut Angle	Hub Length (in)	Hub Length (mm)	Center ID (in)	Center ID (mm)	Offset (in)	Offset (mm)	Countersink	Backspace (in)	Backspace (mm)	Configuration	Bearing Type	Type	Pieces	TRA Rim Type	Bead Seat	Flange	Lock Ring	Load Index	Material	Color	Detail URL	Brand	Brand Cat.	Brand Post ID	Make	Model	Equipment	Industries	Image	Permalink

Specifications for all products:

PART #	WHEEL SIZE	FITS TIRE SIZE	DIAMETER	DEPTH	BOLT HOLES	BOLT HOLE CIRCLE	PILOT HOLE	COUNTERSINK	MARKET
131559	15 X 10	26/12D380	15	10	9	9.5	8	TAPER	CONSTRUCTION
51099-A	15 X 10	26/12D380	15	10	6	6	4.62	TAPER	CONSTRUCTION
4860207	15 X 10	26/12D380	15	10	5	5.5	3.66	TAPER	CONSTRUCTION
73196	16.5 X 9.75	12-16.5	16.5	9.75	9	9.5	7.92	TAPER	CONSTRUCTION
138727	16.5 X 9.75	12-16.5	16.5	9.75	8	10.82	8.74	FLAT	CONSTRUCTION
1659755519	16.5 X 9.75	12-16.5	16.5	9.75	8	10.63	8.7	TAPER	CONSTRUCTION
4860213	16.5 X 9.75	12-16.5	16.5	9.75	9	9.5	7.93	TAPER	CONSTRUCTION
1.6598E+11	16.5 X 9.75	12-16.5	16.5	9.75	8	10.63	8.7	FLAT	CONSTRUCTION
1.6598E+11	16.5 X 9.75	12-16.5	16.5	9.75	8	10.82	8.68	FLAT	CONSTRUCTION
1951175600	19.5 X 11.75	15-19.5	19.5	11.75	9	9.5	7.93	TAPER	CONSTRUCTION
5.1745E+10	19.5 X 12.25	15-19.5	19.5	12.25	8	10.83	8.86	FLAT	CONSTRUCTION
19514004	19.5 X 14	33/16LL500	19.5	14	9	9.5	7.93	NA	CONSTRUCTION
4860237	19.5 X 14	33/16LL500	19.5	14	9	9.5	7.93	TAPER	CONSTRUCTION
19514023	19.5 X 14	33/16LL500	19.5	14	9	9.5	7.93	TAPER	CONSTRUCTION
1001233305	19.5 X 14	33/16LL500	19.5	14	8	10.82	8.71	FLAT	CONSTRUCTION
160911	19.5 X 11.75	385/65-19.5	19.5	11.75	8	10.82	8.7	FLAT	CONSTRUCTION
4860188-411	19.5 X 13	445/55D19.5	19.5	13	10	13.18	11.25	TAPER	CONSTRUCTION
1001166153	20 X 11	315/55D20	20	11	9	9.5	7.93	TAPER	CONSTRUCTION
73190	22.5 X 11.75	385/65-22.5	22.5	11.75	10	13.18	11.08	TAPER	CONSTRUCTION
1001097348	22.5 X 11.75	39/15-22.5	22.5	11.75	9	9.5	7.93	TAPER	CONSTRUCTION
1225407	22.5 X 14	41/18LL22.5	22.5	14	9	9.5	7.93	FLAT	CONSTRUCTION
50030	22.5 X 13	445/65D22.5	22.5	13	10	13.18	11.07	TAPER	CONSTRUCTION
7-166-05	24 X 9	13.00-24	24	9	10	13.18	11.12	TAPER	CONSTRUCTION
7301054	24 X 9	13.00-24	24	9	10	13.18	11.19	TAPER	CONSTRUCTION
7301055	24 X 9	13.00-24	24	9	8	10.82	8.85	TAPER	CONSTRUCTION
9136-3202	24 X 9	13.00-24	24	9	12	15	12.78	FLAT	CONSTRUCTION
515059499	24 X 9	13.00-24	24	9	10	13.18	11	FLAT	CONSTRUCTION
1001091168	24 X 9	13.00-24	24	9	10	13.18	11.07	FLAT	CONSTRUCTION
2409077	24 X 9	13.00-24	24	9	8	10.82	8.77	FLAT	CONSTRUCTION
2409039	24 X 9	13.00-24	24	9	5	13.18	11.5	TAPER	CONSTRUCTION
141821	24 X 9	13.00-24	24	9	8	10.82	8.77	TAPER	CONSTRUCTION
9147-3206	24 X 9	13.00-24	24	9	10	13.18	11.08	FLAT	CONSTRUCTION
24513800	24.5 X 13	15-625	24.5	13	10	13.18	11.25	TAPER	CONSTRUCTION
625381001	24.5 X 15	18-625	24.5	15	11	13.18	11.07	TAPER	CONSTRUCTION
88254	24.5 X 15	18-625	24.5	15	10	13.18	11.07	TAPER	CONSTRUCTION
4860225	24.5 X 15	18-625	24.5	15	10	13.18	11.25	TAPER	CONSTRUCTION
166711	24.5 X 15	18-625	24.5	15	10	13.18	11.08	FLAT	CONSTRUCTION
2451175S60	24.5 X 11.75	355/55-625	24.5	11.75	9	9.5	7.93	FLAT	CONSTRUCTION
2451175Z45	24.5 X 11.75	355/55-625	24.5	11.75	9	9.5	7.93	TAPER	CONSTRUCTION
2451175600	24.5 X 11.75	355/55-625	24.5	11.75	9	9.5	7.93	TAPER	CONSTRUCTION
625298001	24.5 X 11.75	355/55-625	24.5	11.75	8	8	6.06	TAPER	CONSTRUCTION
14510-000	25 X 13	15.5-25	25	13	10	13.18	11.09	TAPER	CONSTRUCTION
7301056	25 X 13	17.5-25	25	13	10	13.18	11.19	TAPER	CONSTRUCTION
2513076	25 X 13	17.5-25	25	13	5	13.18	11.5	TAPER	CONSTRUCTION
725453	25 X 13	17.5-25	25	13	10	13.18	11.063	TAPER	CONSTRUCTION
9156-3250	25 X 13	17.5-25	25	13	10	13.18	11.07	FLAT	CONSTRUCTION
826784GT	28 X 10	13.00-28	28	10	8	10.82	8.77	TAPER	CONSTRUCTION
126406806	28 X 10	14.00-28	28	10	10	13.18	11.12	TAPER	CONSTRUCTION
2811013	28 X 11	370/75-28	28	11	10	13.18	11.08	FLAT	CONSTRUCTION
LBW1100285H	28 X 11	370/75-28	28	11	5	13.18	11.5	TAPER	CONSTRUCTION
1001120178	28 X 12	400/75-28	28	12	10	13.18	11.08	FLAT	CONSTRUCTION
LBW1200285H	28 X 12	400/75-28	28	12	5	13.18	11.5	TAPER	CONSTRUCTION
4860236	28 X 15	445/50D710	28	15	16	12	10.7	FLAT	CONSTRUCTION
226562	28 X 15	445/50D710	28	15	11	13.18	11.07	TAPER	CONSTRUCTION
T111704	28 X 15	445/50D710	28	15	10	13.18	11.08	TAPER	CONSTRUCTION
