CAT/WEILER Wheels

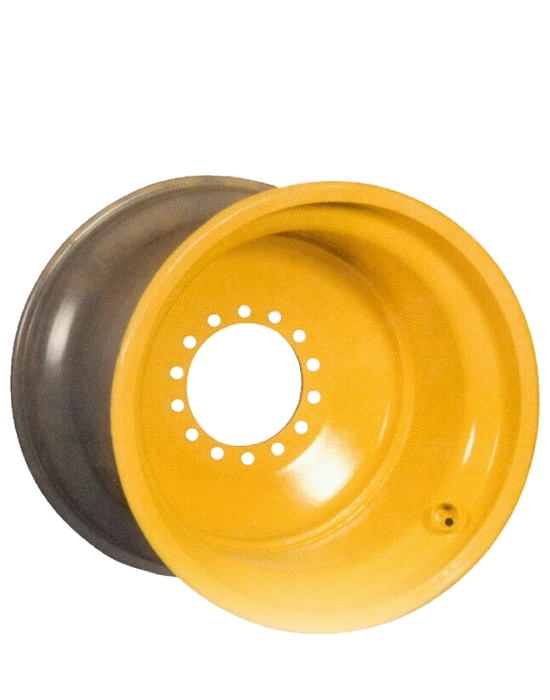

OTR’s application-specific steel CAT/WEILER wheels range in side from 32×27 to 32×44. These wheels are regarded as best-in-class, designed for extreme-duty and long life with exceptional value as well.

Find a Dealer

Specifications for all products:

PART #	WHEEL SIZE	BOLT HOLES	BACKSPACE	CONFIGURATION	TIRE SIZE	MAKE	MARKET
3227016	32 X 27	24	11	STANDARD	30.5X32	CAT/WEILER	Forestry
3227022	32 X 27	24	15	INSIDE DUAL	30.5X32	CAT/WEILER	Forestry
3227034	32 X 27	20	16	INSIDE DUAL	30.5X32	CAT/WEILER	Forestry
32X27W005	32 X 27	20	15	INSIDE DUAL	30.5X32	CAT/WEILER	Forestry
32X27W015	32 X 27	24	11	INSIDE DUAL	30.5X32	CAT/WEILER	Forestry
32X27W017	32 X 27	20	15	STANDARD	30.5X32	CAT/WEILER	Forestry
32X31W003	32 X 31	20	15	STANDARD	35.5 X 32	CAT/WEILER	Forestry
32X31W010	32 X 31	24	11	STANDARD	35.5 X 32	CAT/WEILER	Forestry
32X31W011	32 X 31	24	15	STANDARD	35.5 X 32	CAT/WEILER	Forestry
32X31W016	32 X 31	20	11	STANDARD	35.5 X 32	CAT/WEILER	Forestry
32X31W017	32 X 31	24	11	INSIDE DUAL	35.5 X 32	CAT/WEILER	Forestry
32X31W024	32 X 31	24	15	INSIDE DUAL	35.5 X 32	CAT/WEILER	Forestry
32X36W008	32 X 36	24	11	STANDARD	73X44.00-32	CAT/WEILER	Forestry
