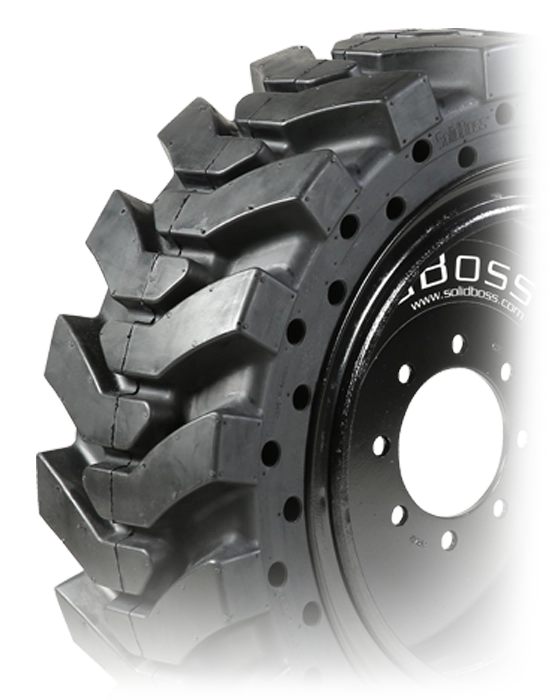

SOLIDBOSS Assemblies
SOLIDBOSS® aperture tires are designed with the operator in mind, reducing downtime from flats while improving stability and handling. These tires last longer than standard pneumatic tires which, in turn, reduces life cycle cost. Plus, they ensure a smooth “bounce free” ride on rough terrain, compliments of cushioning apertures that absorb shock. Designed especially for telehandlers, skid-steers and heavy-duty equipment, SolidBoss tires are preferred by leading OEMs.
Specifications for all products:
| PART # | DESCRIPTION | LOAD | OD | OD | SW | TIRE FITMENT | TREAD | TREAD DEPTH | BP | MARKET |
| PFG130024 | 13.00-24 | 14990@25MPH | 50 | 50 | 12 | 13.00-24 | R4 | 91/32 | 10 ON 13.18 | CONSTRUCTION |
| PSG130024D50 | 13.00-24 | 14990@25MPH | 50 | 50 | 12 | 13.00-24 | R4 | 91/32 | 10 ON 13.18 | CONSTRUCTION |
| PSG130024G844 | 13.00-24 GENIE | 14990@25MPH | 50 | 50 | 12 | 13.00-24 | R4 | 91/32 | 8 ON 10.83 | CONSTRUCTION |
| PFG1300245H | 13.00-24 JCB | 14990@25MPH | 50 | 50 | 12 | 13.00-24 | R4 | 91/32 | 5 ON 13.19″ | CONSTRUCTION |
| PSG130024D505H | 13.00-24 JCB | 14990@25MPH | 50 | 50 | 12 | 13.00-24 | R4 | 91/32 | 5 ON 13.19″ | CONSTRUCTION |
| PSG130028D | 13.00-28 | 11800@25MPH | 50.2 | 50.2 | 14.5 | 13.00-28 | R4 | 96/32 | 10 ON13.18 | CONSTRUCTION |
| PSG130028ND | 13.00-28 | 11800@25MPH | 50.2 | 50.2 | 14.5 | 13.00-28 | ND | 96/32 | 10 ON 13.18 | CONSTRUCTION |
| PFG140024 | 14.00-24 | 17630@25MPH | 53 | 53 | 14 | 14.00-24 | R4 | 91/32 | 10 ON 13.18 | CONSTRUCTION |
| PFG1400245H | 14.00-24 JCB | 17630@25MPH | 53 | 53 | 14 | 14.00-24 | R4 | 91/32 | 5 ON 13.19″ | CONSTRUCTION |
| PSG140024 | 14.00-24 JLG SKYJACK GEHL | 17630@25MPH | 53 | 53 | 14 | 14.00-24 | R4 | 91/32 | 10 ON 13.18 | CONSTRUCTION |
| PSG140028D | 14.00-28 | 12800@25MPH | 51.5 | 51.5 | 15.5 | 14.00-28 | R4 | 96/32 | 10 ON 13.18 | CONSTRUCTION |
| PSG140028ND | 14.00-28 | 12800@25MPH | 51.5 | 51.5 | 15.5 | 14.00-28 | ND | 96/32 | 10 ON 13.18 | CONSTRUCTION |
| PXG2785015L1H6H | 27X8.50-15 | 4600@25MPH | 27 | 27 | 8.5 | 27X8.50-15 | R4 | 64/32 | 6 ON 6 | CONSTRUCTION |
| PFG301016SKS8H | 30X10-16 | 4850@25MPH | 30 | 30 | 9 | 10-16.5 | R4 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PSG301016SE8H.875 | 30X10-16 | 4850@25MPH | 30 | 30 | 9 | 10-16.5 | R4 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PSG301016SE68H | 30X10-16 HD | 4850@25MPH | 30 | 30 | 9 | 10-16.5 | L5 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PSG311020SE58H | 31X10-20 | 4850@25MPH | 31 | 31 | 9 | 10-16.5 | R4 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PFG331220SKS8H | 33X12-20 | 4850@25MPH | 33 | 33 | 9 | 12-16.5 | R4 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PSG331220SE8H | 33X12-20 | 8113@25MPH | 33 | 33 | 11 | 12-16.5 | R4 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PSG331220SEBC8X10.75 | 33X12-20 | 8113@25MPH | 33 | 33 | 11 | 12-16.5 | R4 | 50/32 | 8 ON 10.75 | CONSTRUCTION |
| PSG331220SEBH8X10.83 | 33X12-20 4WD BACKHOE JD/CASE | 8113@25MPH | 33 | 33 | 11 | 12-16.5 | R4 | 50/32 | 8 ON 10.83 | CONSTRUCTION |
| PSG331220SE68H | 33X12-20 HD | 8113@25MPH | 33 | 33 | 11 | 12-16.5 | L5 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PFG331220NMSKS8H | 33X12-20 NONMARKING | 8113@25MPH | 33 | 33 | 11 | 12-16.5 | R4 | 50/32 | 8 ON 8 | CONSTRUCTION |
| PXG331220BHL1H | 33X12-20 SKYJACK/GEHL/JCB/GENIE5519/JLG G5-18A | 8113@25MPH | 33 | 33 | 11 | 12-16.5 | R4 | 50/32 | 8 ON 10.83 | CONSTRUCTION |
| PSG361420SE8H1.5 | 36X14-20 | 7260@25MPH | 36.7 | 36.7 | 13.8 | 14-17.5 | R4 | 83/32 | 8 ON 8 | CONSTRUCTION |
| PSG361420SEBC8X10.75 | 36X14-20 | 7260@25MPH | 36.7 | 36.7 | 13.8 | 14-17.5 | R4 | 83/32 | 8 ON 10.75 | CONSTRUCTION |
| PSG57012SE5H | 5.70-12 | 2860@25MPH | 22 | 22 | 5.7 | 5.70-12 | R4 | 42/32 | 5 ON 4.5 | CONSTRUCTION |
